Sunrise BQE Series BQE-02, BQE-03, BQE-04 Quick Exhaust Valve PT1/4, PT3/8, PT1/2

Name: Sunrise BQE Series BQE02 BQE03 BQE04 Quick Exhaust Valve PT14 PT38 PT12
Brand: Sunrise, AIRWOLF or OEM
Price: 4 USD

China Sunrise BQE Series BQE-02, BQE-03, BQE-04 Quick Exhaust Valve PT1/4, PT3/8, PT1/2 wholesale

Brand Name : Sunrise, AIRWOLF or OEM

Model Number : BQE-02, BQE-03, BQE-04

Place of Origin : China

MOQ : 1 piece

Price : 4-5USD

Payment Terms : T/T,Western Union,Paypal

Supply Ability : 1000 pcs per week

Delivery Time : 1-7 work days

Packaging Details : Boxes, Cartons, Pallets, Plastic bags

Operating Pressure : 0~1.0MPa

Working Temperature Range : –5~+60℃

Port Size : PT1/4, PT3/8, PT1/2

Function : Speed Control

Working Medium : Dry compressed air filtered by 40μm

Color : Silver

Contact Now

Sunrise BQE Series Brass Quick Exhaust Valve BQE-02, BQE-03, BQE-04 with PT1/4, PT3/8, PT1/2 Port Size and 0~1.0MPa Operating Pressure

Order Codes:

Type	Port Size	Positions
BQE-02	PT1/4	3/2 way
BQE-03	PT3/8	3/2 way
BQE-04	PT1/2	3/2 way

Symbol:

Sunrise BQE Series BQE-02, BQE-03, BQE-04 Quick Exhaust Valve PT1/4, PT3/8, PT1/2

Specification:

Model		BQE-01	BQE-02	BQE-03	BQE-04
Working Media		Clean air
Port Size		PT1/8	PT1/4	PT3/8	PT1/2
Max.Working Pressure		1.0MPa
Proof Pressure		1.5MPa
Working Temperature Range		-5~60℃
Material	Body	Brass
	Seal	NBR

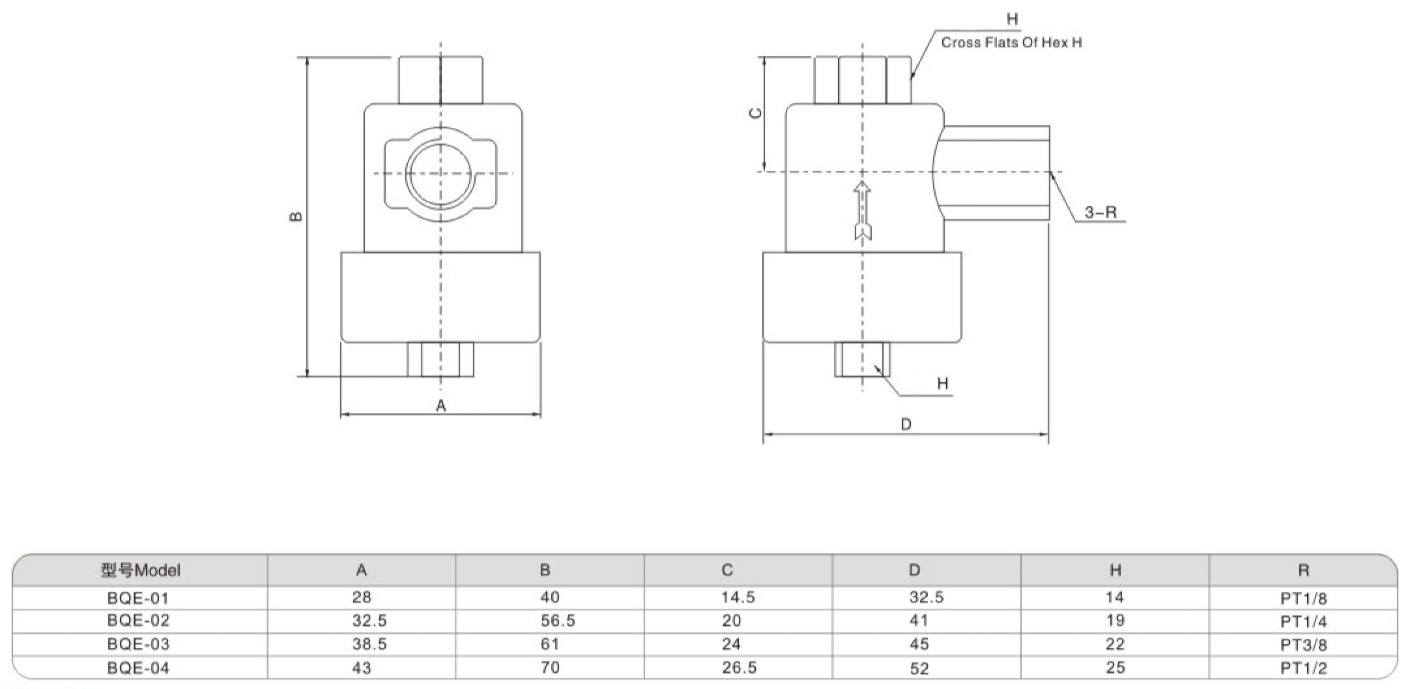

Dimension:

Sunrise BQE Series BQE-02, BQE-03, BQE-04 Quick Exhaust Valve PT1/4, PT3/8, PT1/2

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:

Our product features:	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging	3) 1 year warranty
4) Produce according to Customers’ instruction	4) Photos/videos are available during production.
5) None delay shipment	5) Loading inspection, and send loading photos before shipment.
